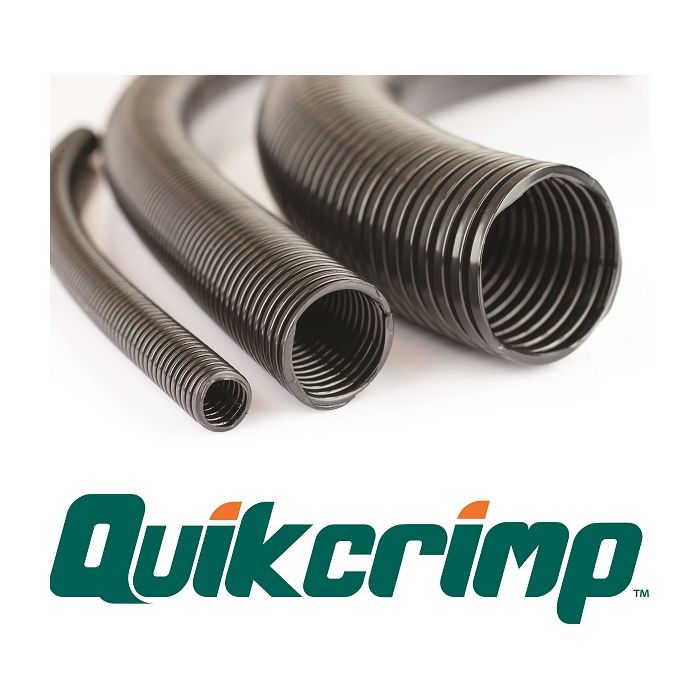

Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll

Special Price $891.00 Regular Price $914.48
In stock
SKU
NC50
  • Buy 2 for $880.00 each and save 1%
  • Buy 5 for $770.00 each and save 14%
  • Buy 10 for $693.00 each and save 22%
Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll is available to buy in increments of 1

Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll

Quikcrimp NC50 Harnessflex Nylon Flexible Non-Split 50mm Corrugated Tubing 25M Roll

Harnessflex Premium Nylon Conduit is designed to withstand temperatures from -40°C to +120°C for long term static use and holds many features including:

  • Resistance to many oils, solvents and petrochemicals
  • Flexible tough construction with high impact strength and a long fatigue life
  • High UV resistance, halogen free and self extinguishing

When used in conjunction with the extensive range of fittings and adaptors the Harnessflex system offers extreme versatility for both harness manufacture and general purpose applications, which can be made fully waterproof to IP67.

Unit of Measure Each
Length 25m
Material Nylon
After Heating Outer Dimension mm 54.5mm
Bore 46.5
Dielectric Strength 25MV/m
Elongation At Break N/A
Flexural Modulus 1.0GPa
Halogen Free Yes
Impact Strength Notched Izod 0.25KJ/m
Melting Point 220°C
Nominal Size 50
Specific Gravity 1.14
Tensile Strength 40MPa
Volume Resistivity 8 log ohm cm
Max Operating Temperature Static 120°C
Max Operating Temperature Dynamic 100°C
Min Operating Temperature Dynamic -30°C
Min Operating Temperature Static -40°C
