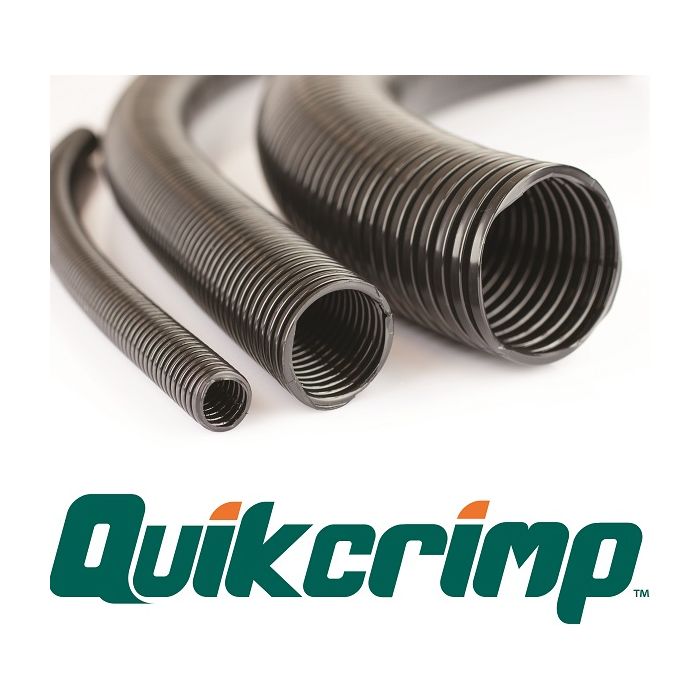

Quikcrimp NC16 Harnessflex Nylon Flexible 16mm Conduit 50m Roll

Special Price $187.00 Regular Price $198.25
In stock
SKU
NC16
Quikcrimp NC16 Harnessflex Nylon Flexible 16mm Conduit 50m Roll is available to buy in increments of 1

Quikcrimp NC16 Harnessflex Nylon Flexible 16mm Conduit 50m Roll

Quikcrimp NC16 Harnessflex Nylon Flexible 16mm Conduit 50m Roll

Harnessflex Premium Nylon Conduit is designed to withstand temperatures from -40°C to +120°C for long term static use and holds many features including:

  • Resistance to many oils, solvents and petrochemicals
  • Flexible tough construction with high impact strength and a long fatigue life
  • High UV resistance, halogen free and self extinguishing

When used in conjunction with the extensive range of fittings and adaptors the Harnessflex system offers extreme versatility for both harness manufacture and general purpose applications, which can be made fully waterproof to IP67.

Unit of Measure Each
Length 50m
Material Nylon
After Heating Outer Dimension mm 16.1mm
Bore 12.7
Dielectric Strength 25MV/m
Elongation At Break N/A
Flexural Modulus 1.0GPa
Halogen Free Yes
Impact Strength Notched Izod 0.25KJ/m
Melting Point 220°C
Nominal Size 16
Specific Gravity 1.14
Tensile Strength 40MPa
Volume Resistivity 8 log ohm cm
Max Operating Temperature Static 120°C
Max Operating Temperature Dynamic 100°C
Min Operating Temperature Dynamic -30°C
Min Operating Temperature Static -40°C
More Information
Manufacturer Quikcrimp
